Computerized Panel Cutter Machine
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | YuTeng |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | $9,200-10,000 |
|
Informação detalhada |
|||
| Capacidade de produção: | 10 m/min | Tensão: | 220V/380V |
|---|---|---|---|
| Poder: | 2.6kw | Dimensão: | 3800*1200*2350 mm |
| Peso: | 1150 kg | Comprimento de corte eficaz: | 600-2100 mm ou ilimitado |
| Largura de corte eficaz: | 80-2600mm | Grossura: | ≦60mm |
| velocidade: | 10m/minuto | Pressão do ar: | 0.4-0.8 Mpa |
| Modelo: | YTCM96-H | Componentes principais: | MOTOR |
| Nota automática: | Automático | Tamanho de tela táctil: | 7 polegadas |
| Tipo de faca: | Borda de lâmina dupla | ||
| Destacar: | computerized panel cutter machine,computerized cutting machine with warranty,precision panel cutter machine |
||
Descrição de produto

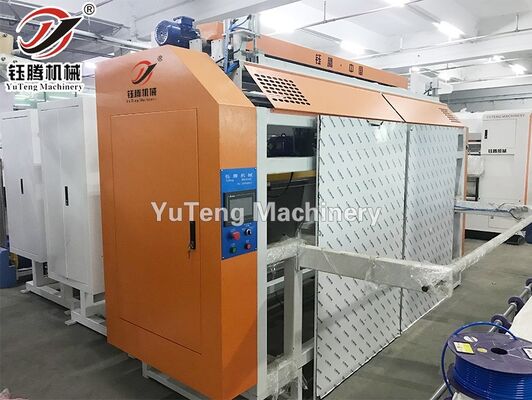

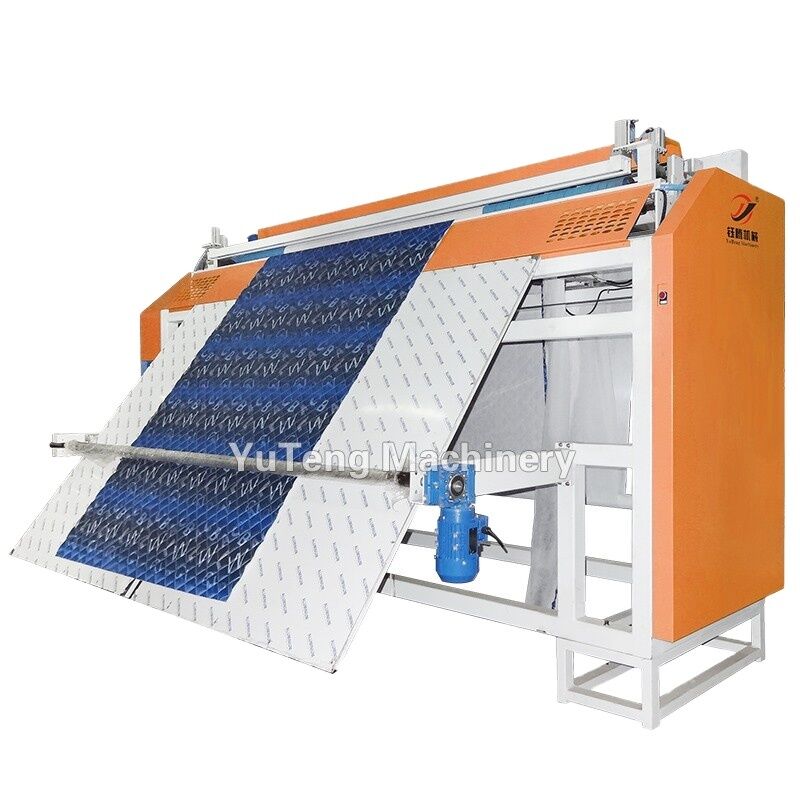

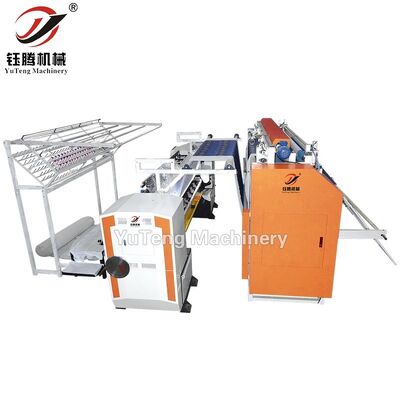

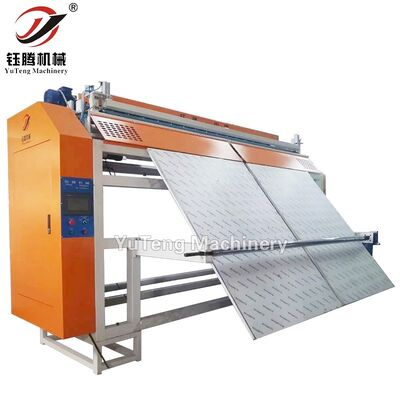

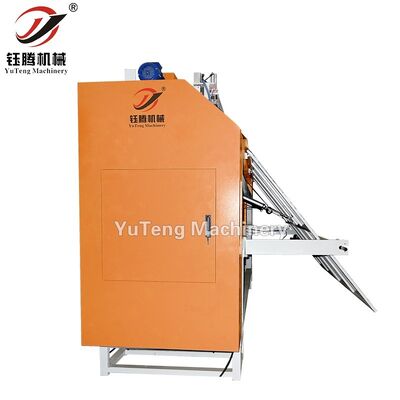

Computerized Panel Cutter Machine
Product Parameters
| Model | YTCM96-H |
|---|---|
| Dimension (L x W x H) | 3800*1280*2350(mm) |
| Effective cutting length | 600-2100 mm or unlimited |
| Effective cutting width | 80-2600 mm |
| Thickness | ≦60 mm |
| Speed | 10 m / minute |
| Power | 3.2 KW |
| Air pressure | 0.4-0.8 Mpa |
| Voltage | 380V/50HZ,220V/60HZ,3-Phase |
| Weight | 1150 KG |
Key Features
7-inch touch screen interface with Chinese/English conversion for easy operation
Dual operating modes: photoelectric sensing and encoder for versatile material cutting
Double blade edge knife ensures precise edge cutting
Can operate independently or with quilting machines
Space-saving sliding board design
Electric constant length adjustment for cutting dimensions
Synchronous pressing rod for even pressure and smooth feeding
Optimized box-shaped frame structure for improved cutting quality and efficiency
Large knife disc flying cutting mode for adjustable splattering
All CE certified components for extended machine lifespan
